Graphite Design
Graphite Design Tour AD HD [ Driver + Wood Shaft ]
Graphite Design Tour AD HD [ Driver + Wood Shaft ]
Couldn't load pickup availability
Wood/Driver Shaft Customization
Free with Club Purchase
Enhance your performance with our complimentary shaft customization service. With your club purchase, we’ll tailor your shaft to fit your exact specs — at no extra cost.
Already added a shaft to your cart?
Be sure to click [here] to customize your shaft — select your preferred loft, adapter, and length so we can build it just right for you.
![Graphite Design Tour AD HD [ Driver + Wood Shaft ]](http://www.yesgolfshop.com/cdn/shop/files/HD_4_S_28a74ecf-daf2-42e5-9db0-97fe590ee40c.jpg?v=1745611033&width=1445)
![Graphite Design Tour AD HD [ Driver + Wood Shaft ]](http://www.yesgolfshop.com/cdn/shop/files/graphite_design_tour_ad_hd_shaft_1.jpg?v=1745611015&width=1445)

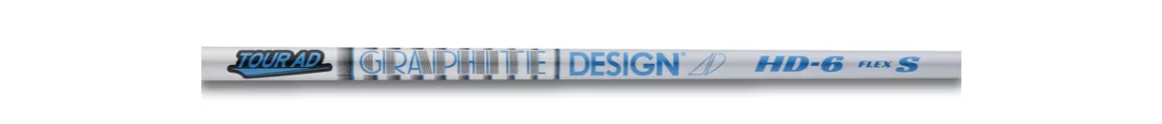

Introducing Graphite Design Tour AD HD Shaft.
The "TOUR AD HD" series is a shaft that maximizes the head performance of large and high moments of inertia, which is the mainstream of wood today.
By using the new material carbon "Trading Card ® M40X" from the tip to the middle part and "Trading Card ® T1100G" at the tip part, the rigidity of the tip to the middle part is increased and the impact is achieved with stable tip behavior.
Achieves a stable amount of spin by suppressing variations in hit points.
Pursuing ease of swinging by adopting a fast taper design that subdivides the rigidity from the hand to the tip.
There is a sense of speed and it is hard to be late, and the initial velocity of the ball is increased.
TECHNICAL SPECS
| Series | Flex | Desc | Wt(q) | Torque (Deg) | Tip Dia(mm) | Tip Para(mm) | Butt Dia(mm) | Kick Point | Shaft Length (mm) |
| HD-4 | R2 | LITE/SENIOR | 49.0 | 5.8 | 8.50 | 75.0 | 15.20 | MID | 1168 |
| HD-4 | R1 | REGULAR | 49.0 | 5.8 | 8.50 | 75.0 | 15.20 | MID | 1168 |
| HD-4 | S | STIFF | 50.0 | 5.7 | 8.50 | 75.0 | 15.20 | MID | 1168 |
| HD-5 | R2 | LITE/SENIOR | 56.0 | 4.5 | 8.50 | 75.0 | 15.15 | MID | 1168 |
| HD-5 | R1 | REGULAR | 57.0 | 4.4 | 8.50 | 75.0 | 15.20 | MID | 1168 |
| HD-5 | S | STIFF | 59.0 | 4.4 | 8.50 | 75.0 | 15.25 | MID | 1168 |
| HD-5 | X | X-STIFF | 61.0 | 4.4 | 8.50 | 75.0 | 15.35 | MID | 1168 |
| HD-6 | SR | STIFF REGULAR | 65.0 | 3.1 | 8.50 | 75.0 | 15.15 | MID | 1168 |
| HD-6 | S | STIFF | 66.0 | 3.1 | 8.50 | 75.0 | 15.20 | MID | 1168 |
| HD-6 | X | X-STIFF | 68.0 | 3.1 | 8.50 | 75.0 | 15.25 | MID | 1168 |
| HD-7 | S | STIFF | 74.0 | 2.9 | 8.50 | 75.0 | 15.25 | MID | 1168 |
| HD-7 | X | X-STIFF | 76.0 | 2.9 | 8.50 | 75.0 | 15.30 | MID | 1168 |
| HD-8 | S | STIFF | 86.0 | 2.6 | 8.50 | 75.0 | 15.25 | MID | 1168 |
| HD-8 | X | X-STIFF | 88.0 | 2.6 | 8.50 | 75.0 | 15.30 | MID | 1168 |
